Material Hoist - Dipra Engineers Pvt Ltd

As at today we have successfully completed more than 1000 Goods Hoist installations using ‘’Speed”, “NH”, "Nitchi" and "Elephant" brand Japanese chain Hoists, "Thac" and "Comeup" brand Taiwan and "Indef" brand from India, capacity starting from 250Kg to 10000Kg and servicing up to 6 floors to small work shop to Super Markets, Garment & Textile Factories, Dock yards, Printing Industries, Tea factories, Ware house complexes, Office complexes, Hospitals, Hotels & restaurants and to Residences.

Specifications and Features

Capacity	Standard ranging for 300kg to 5000kg High capacities available upon request.
Type	Goods Only.
Size	To Suit to Customer requirement
Speed	Standard ranging from 4.00m/min to 6.2m/min
Drive System	Electrically operated chain Hoist/ rope Hoist.
Door type	Collapsible gates/ Roller shutter doors.
Entry/Exit	Front single entry/Side single entry/Through cabin / other combination are available upon request.
Power Supply	415V, 3Phase, 50Hz
Hoist Cabin	Steel Frame/choice of cabin enclosure-Ply wood/Malamine sheet//Steel sheet panel/wire mesh /Open concept/Stainless Steel
Safety Features	Door inter locks/emergency stop switch/landing door censors/Over run limit switches/Anti drop Prevention safety unit could be fitted on site condition.

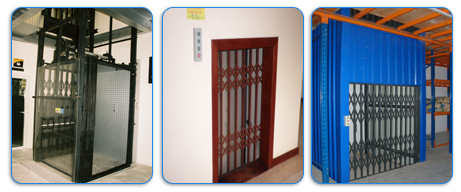

Some of our projects among more than 1000 installation successfully completed

Material hoists at SDS.Spice Private Ltd design, supply & commissioning December 2009	Material hoists at Cargills Food City 75nos. outlets design, supply & commissioning since Feb 2001	Material hoist at Kandy Tex,Kadawatha Design, supply & commissioning November 2009	Material hoist at JC Enterprices,Colombo 14. Design, supply & commissioning July 2008
Dumbwaiter at Amaya Hills Hotel, Kandy Design, supply & commissioning November 2009	Material Hoist Kent Park Apparel, Bangladesh Design Supply & Commissioning March 2008	Passenger Hoist at Mr.Harsha Amarasekara Residence Design Supply & Commissioning January 2007	Passenger Hoist at Wickramarachchci Optician, Delekanda Design Supply & Commissioning January 2008

Material Hoist Technical Data

Rated Load KG	Machine Capacity	Rated Speed MS	Door Size WxDH (m)	Cabin Dimension (m)	Shaft Dimension (m)	Overhead Height OH (m)	Pit Depth PP (mm)	Power Capacity AMP
500	1000	6.7m/min	1.0 x 1.83/2.1	1.0 x 1.12	1.24 x 1.12	1.83-3.0/2.1-3.3	300	15AMP 3 Phase 50Hdz 4P
500	1000	6.7m/min	1.25 x 1.83/2.1	1.25 x 1.25	1.58 x 1.43	1.83-3.0/2.1-3.3	300
500	1000	6.7m/min	1.5 x 1.83/2.1	1.5 x 1.5	1.83 x 1.68	1.83-3.0/2.1-3.3	300
500	1000	6.7m/min	1.75 x 1.83/2.1	1.75 x 1.75	2.14 x 2.0	1.83-3.0/2.1-3.3	300
500	1000	6.7m/min	2.0 x 1.83/2.1	2.0 x 2.0	2.34 x 2.2	1.83-3.0/2.1-3.3	300
500	1000	6.7m/min	2.25 x 1.83/2.1	2.25 x 2.25	2.64 x 2.46	1.83-3.0/2.1-3.3	300
500	1000	6.7m/min	2.5 x 1.83/2.1	2.5 x 2.5	2.95 x 2,75	1.83-3.0/2.1-3.3	300
1000	2000	6.6m/min	1.0 x 1.83/2.1	1.0 x 1.0	1.33 x 1.18	1.83-3.3/2.1-3.6	350
1000	2000	6.6m/min	1.25 x 1.832.1	1.25 x 1.25	1.60 x 1.43	1.83-3.3/2.1-3.6	350
1000	2000	6.6m/min	1.5 x 1.83/2.1	1.5 x 1.5	1.89 x 1.71	1.83-3.3/2.1-3.6	350
1000	2000	6.6m/min	1.75 x 1.83/2.1	1.75 x 1.75	2.14 x 2.0	1.83-3.3/2.1-3.6	350
1000	2000	6.6m/min	2.0 x 1.83/2.1	2.0 x 2.0	2.34 x 2.2	1.83-3.3/2.1-3.6	350
1000	2000	6.6m/min	2.25 x 1.83/2.1	2.25 x 2.25	2.68 x 2.48	1.83-3.3/2.1-3.6	350
1000	2000	6.6m/min	2.5 x 1.83/2.1	2.5 x 2.5	2.95 x 2.75	1.83-3.3/2.1-3.6	350
2000	3000	2.2m/min	1.5 x 1.83/2.1	1.5 x 1.5	1.93 x 1.73	1.83-3.6/2.1-4.0	400	20AMP 3 Phase 50Hdz 4P
2000	3000	2.2m/min	1.75 x 1.83/2.1	1.75 x 1.75	2.18 x 2.0	1.83-3.6/2.1-4.0	400
2000	3000	2.2m/min	2.0 x 1.83/2.1	2.0 x 2.0	2.45 x 2.2	1.83-3.6/2.1-4.0	400
2000	3000	2.2m/min	2.25 x 1.83/2.1	2.25 x 2.25	2.68 x 2.48	1.83-3.6/2.1-4.0	400
2000	3000	2.2m/min	2.5 x 1.83/2.1	2.5 x 2.5	2.9 x2.7	1.83-3.6/2.1-4.0	400
